The ARTCAM-400SX-USB3 is a vacuum-compatible, head-separated back-illuminated sCMOS camera equipped with the Gpixel GSENSE400BSI-PS sensor. It is ideal for direct measurement of EUV (extreme ultraviolet) and soft X-rays.

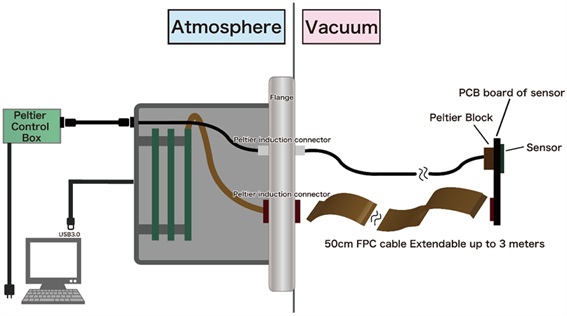

With a separated sensor board, this camera allows for easy vacuum integration, making it highly versatile for scientific and industrial applications.
Additionally, this camera is equipped with a Peltier induction connector, which facilitates vacuum cooling and ensures operational stability over an extended period.
The sCMOS sensor features high sensitivity with a quantum efficiency of over 90% in the 80–1000 eV energy range, along with a low noise level of 1.6e-rms. These characteristics enable precise and reliable measurements.
| Model | Interface | Spectral Sensitivity Chart |
Pixels (approx.) |
Sensor Manufacturer |
Sensor Model | Effective Image Size (mm) (H)×(V) |
Output Resolution (H)×(V) |
Diagonal Size |
Pixel Size (μm) (H)×(V) |
Detection Energy Range |
Output Bit Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ARTCAM-400SX-USB3 | USB3.0 | Click here | 4 M | Gpixel | GSENSE400BSI-PS | 22.5 × 22.5 | 2048 × 2048 | 31.8 mm | 11 × 11 | 80–1000 eV | 12-bit |
