Near-Infrared CMOS Camera WOM Series

WOM Series for High-Sensitivity Near-Infrared Imaging

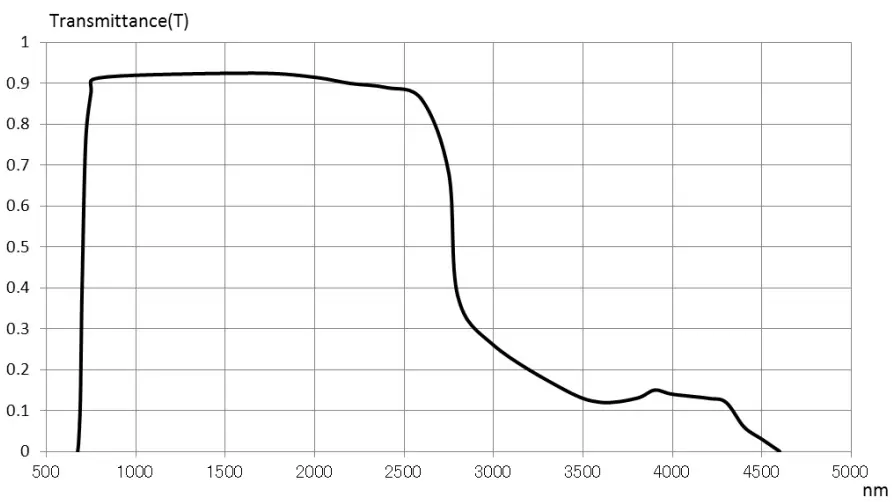

The WOM Series is a high-sensitivity near-infrared camera equipped with a monochrome CMOS sensor and a built-in visible-light cut / NIR bandpass filter. It captures clear images that is invisible to the human eye. This series uses high-quality sensors from Sony and onsemi, delivering excellent image quality and reliable performance. With outstanding sensitivity in the near-infrared range, it is an ideal solution for industrial quality inspection and analysis in specialized lighting environments. Supporting the USB 2.0 interface, it easily connects to a PC and offers the flexibility .

CMOS (Complementary Metal-Oxide-Semiconductor) technology offers low power consumption and high sensitivity. Unlike CCD （Charge Coupled Device）sensors, CMOS sensors process signals at each individual pixel, enabling high-speed readout and making them well-suited for capturing moving subjects. In addition, as CMOS technology advances with higher circuit integration, it enables faster and more efficient data processing while reducing overall system costs. Thanks to these advantages, CMOS sensors are often chosen in industrial cameras, offering high speed and good cost performance across many applications.

In addition, we also offer the Near-Infrared CMOS Camera Series supporting the USB 3.0 interface.

Size & Weight

• External dimensions: 50(W) × 47(H) × 41.7(D) mm
• Weight: approx. 110 g

Included Accessories

• USB cable, standard viewer software, device driver, SDK (Software Development Kit), product manual (PDF file)

Common Specifications

• Lens Mount: C-mount
• Power Supply Voltage: DC 5V (USB Bus Power)

Optional Accessories

• C-mount lens, 2D measurement software, Video recording software
