The UVC (USB Video Class) Camera Series is a user-friendly USB-connected camera designed for easy operation and high PC compatibility. This series enables direct image acquisition to a PC without requiring a special capture card or host adapter card, and adopts a USB 2.0 interface. Smooth and quick connections are possible, making these cameras suitable for various applications, such as real-time video monitoring.
In addition, this camera series supports UVC (USB Video Class), a standardized specification for USB devices. With UVC compatibility, the operating system automatically recognizes and installs drivers when the device is connected to a PC's USB port, eliminating the need for complex configuration. As a result, even first-time users can easily set up and begin using the camera without hassle.
The UVC Camera Series features a compact and lightweight design, allowing for flexible installation regardless of location. This makes it ideal for mobile environments and space-constrained applications. Furthermore, it is equipped with automatic gain control and automatic exposure (exposure time) functions, which adjust settings based on ambient lighting conditions to ensure optimal image quality. With these features, the UVC Camera Series delivers stable performance across diverse environments.
| Model | Type | Pixels (approx.) |
Sensor Manufacturer |
Shutter Type |
Optical Size |
Output Resolution (H)×(V) |
Effective Image Size (mm) (H)×(V) |
Pixel Size (μm) (H)×(V) |
Frame Rate |
Shutter Speed (s) |
Dimensions (mm) (W)×(H)×(D) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ARTCAM-800SN* | Color | 8.0 M | SONY | Rolling | 1/3.2-inch | 3264 × 2448 | 4.5 × 3.4 | 1.4 × 1.4 | 19 fps | Auto | 28 × 28 × 21.8 |
| ARTCAM-200PA | Color | 2.0 M | PixArt | Rolling | 1/2.7-inch | 1920 × 1080 | 5.76 × 3.24 | 3.0 × 3.0 | 30 fps | Auto | 40 × 16 × 18.2 |
| ARTCAM-200SN1 | Color | 2.0 M | onsemi | Rolling | 1/3-inch | 1600 × 1200 | 4.48 × 3.36 | 3.0 × 3.0 | 19 fps | Auto | 33.8 × 33.8 × 50.5 |
| ARTCAM-130SN4 | Color | 1.3 M | onsemi | Rolling | 1/3-inch | 1280 × 1024 | 4.6 × 3.7 | 3.6 × 3.6 | 14 fps | Auto | 50 × 47 × 41.7 |
| ARTCAM-0134ARSS-UVC | Color / Monochrome | 1.2 M | onsemi | Global | 1/3-inch | 1280 × 960 | 4.86 × 3.66 | 3.75 × 3.75 | 30 fps | 1/8192 ~ 1/2 | 28 × 28 × 21.8 |
* Board-type camera only (ARTCAM-800SN)
・Click on the model to view the user manual.

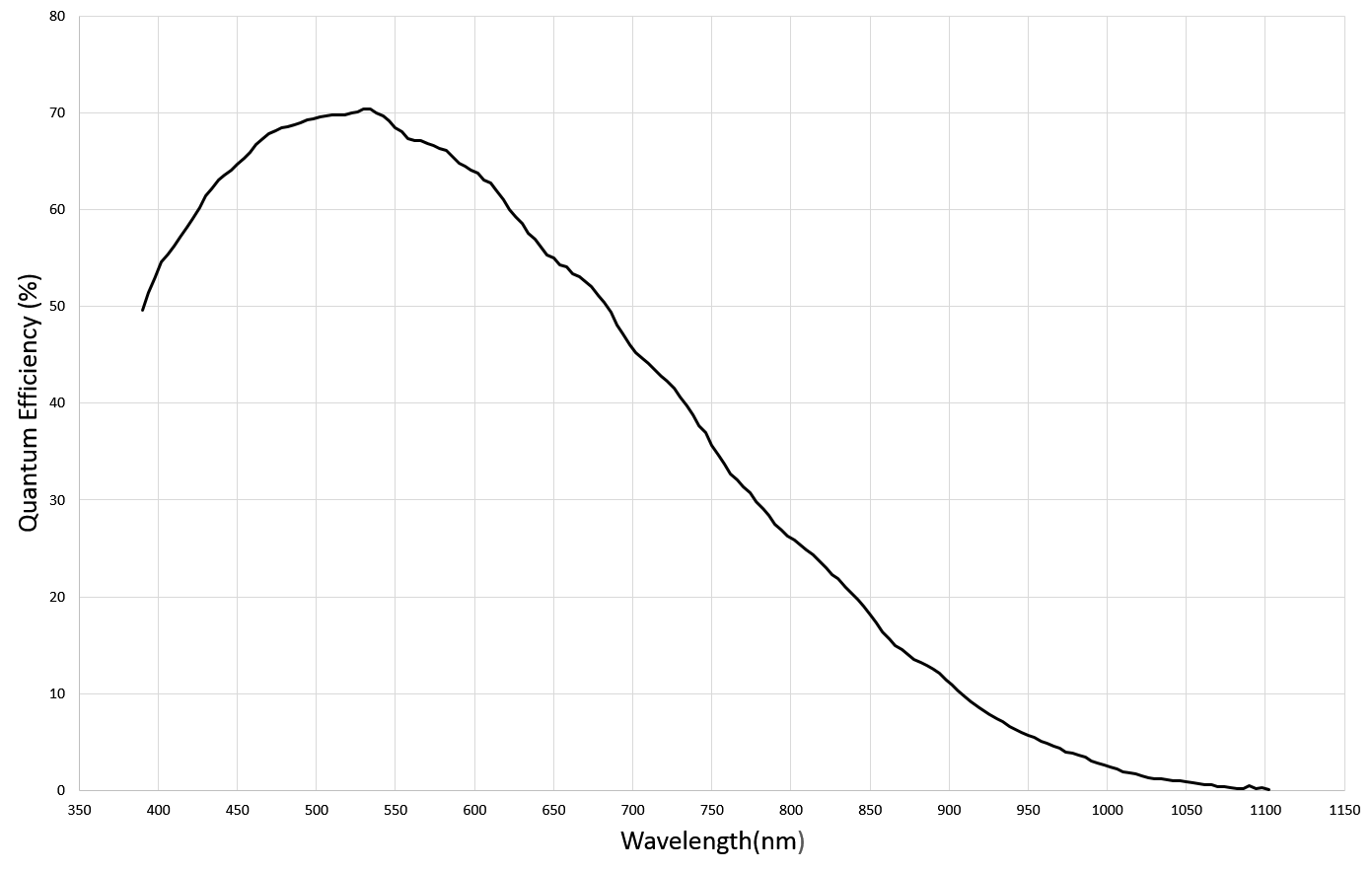

・Click on "Color" or "Monochrome" under "Type" to view the spectral sensitivity characteristics.
