RGB-IR Camera Series

RGB-IR Cameras for Simultaneous Color and Infrared Imaging

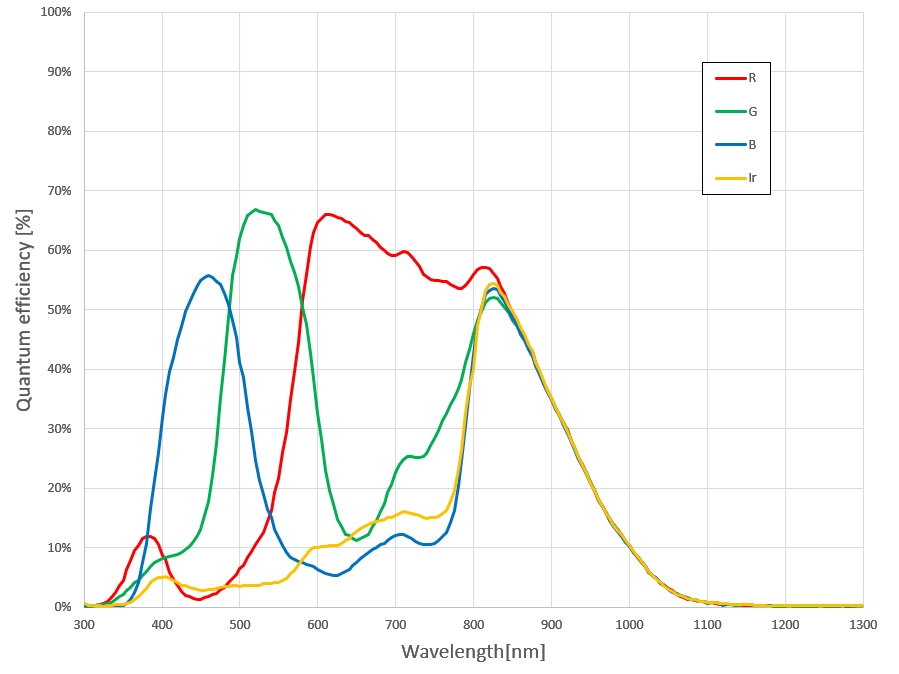

The RGB-IR cameras can capture both visible and infrared (IR) light at the same time, eliminating the need for mechanical filter switching and enabling stable, high-quality imaging. These cameras use sensors with color filters that include IR pixels, allowing both color and IR images to be captured with the same sensor. This ensures consistent image quality without misalignment, making them ideal for applications that need precision, such as industrial inspection, surveillance, medical imaging, and machine vision.

These cameras use Canon sensors to deliver high sensitivity and accuracy in the infrared (IR) range, ensuring reliable performance in different environments. With a fast USB 3.0 connection, they can transfer large amounts of data smoothly, allowing real-time capture and monitoring of high-resolution images and videos.

Specifications

• ARTCAM-5030-USB3
• ・External Dimensions: 90 (W) × 80 (H) × 43 (D) mm
• ・Weight: Approx. 360 g (Excluding lens, tripod mount, and protrusions)
• ・Power Supply Voltage: DC 12V
• ・Lens Mount: M58 mount (Standard), F mount (Optional)


• ARTCAM-5040-USB3
• ・External Dimensions: 80 (W) × 65 (H) × 36.8 (D) mm
• ・Weight: Approx. 250 g (Excluding lens, tripod mount, and protrusions)
• ・Power Supply Voltage: DC 5V (USB Bus Power)
• ・Lens Mount: C-mount

Included Accessories

• USB cable, Standard viewer software, Device driver, SDK (Software Development Kit), Product manual (PDF file), AC Adaptor (Only applicable to ARTCAM-5030-USB3)

Optional Accessories

• Lenses, 2D measurement software, Video recording software
